Baarakɛminɛnw na i n’a fɔ ɛntɛrinɛti minɛnw, so kɔnɔ minɛnw ani LED yeelen, kɔnɔna filiw lakanani n’u ka baarakɛcogo ɲuman bɛ nɔ tilennen bila fɛn dilannen ka dannaya n’a ka baarakɛcogo la. UL2468 Kabɔri ye kabali fla ye min bɛ kɛ tuma caman na min bɛ kɛ ka caya k’a sababu kɛ a jɔcogo ka dɔgɔn, a bɛ se ka fɛn caman sɛgɛsɛgɛ, a musaka ka dɔgɔ, ani a lakanani seereyaw gɛlɛnw.
UL2468 Kabɔri ye mun ye?

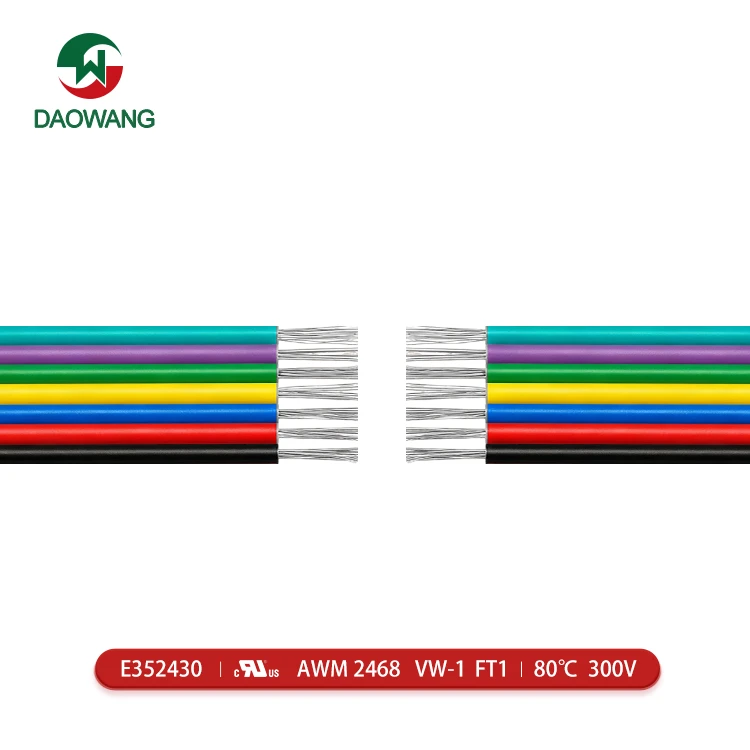

UL2468 yekabali ye ɛntɛrinɛti fili sugu dɔ ye min bɛ AWM (Appliance Wiring Material) cogo la min ɲɛfɔlen don Underwriters Laboratories (UL) fɛ UL 758 sariya kɔnɔ. O ye kabali fla ye min bɛ tali kɛ ɲɔgɔn na, min kɔnɔ, fɛn caman bɛ sɔrɔ minnu bɛ fɛnw tanga (a ka c’a la, u bɛ kɛ 2 fo 150 ye), kɛrɛfɛ-kɛrɛfɛ-plan kelen kɔnɔ, ani a datugulen don ni PVC insulasi ye. a ka wuli hakɛ ye 300V ye , a funteni hakɛ ye degere 80 ye . A bɛ bɛn UL VW-1 tasuma jɔlen sɛgɛsɛgɛli ni CSA FT1/FT2 sɛgɛsɛgɛli ma ka fara RoHS sigida sariyaw kan.
O ɲɛminɛbagaw dilannen don ni nɛgɛ gansan walima nɛgɛ ye min bɛ kɛ tintin na, wa u bɛ sɔrɔ cogo gɛlɛn na walima cogo la min bɛ kɛ ni jiri ye. Insulasi janya bɛ kɛ kelen ye (a cɛmancɛ bɛ se milimɛtɛrɛ 0,38–0,45 ma), o bɛ nɔgɔya ka fɛnw bɔli ni tigɛ nɔgɔya. A jɔcogo fla bɛ yɔrɔ lakana ani ka fɛn caman di, o b’a to a ka ɲi kosɛbɛ kɔnɔna filiw kama minɛn fitininw kɔnɔ. Kulɛri suganditaw ye bilen/nɛrɛma (a ka c’a la, a bɛ kɛ fanga baarakɛcogo la), kulɛri caman-, walima taamasiyɛn kɛlenw walasa ka dɛmɛ don polarite dɔnni na.
A tɛ i n’a fɔ kabali bulama caman-core (i n’a fɔUL2464 ye), UL2468 kabɔri bɛ dɔn a ɲɛda fla la, ni insulasi layini bɛ baara kɛ walasa ka conducteurs siri; k’a sɔrɔ kɛnɛma jakite ye fɛn ye min bɛ se ka kɛ, a ka c’a la, kabali bɛ se ka kɛ ni a tɛ.
Nafa jɔnjɔn minnu bɛ UL2468 Kabɔri la
-
Yɔrɔ baarakɛcogo ɲuman ni a sɛgɛsɛgɛli: Flati dilancogo bɛ jɔli jɔli dɔgɔya, o b’a to a ka ɲi baara kama minɛnw ka chassis kɔnɔ ani ka board-to{1}}board ɲɔgɔndanw kɛ. A bɛ ni kɔrɔtacogo sirilen ye ani sɛgɛn kunbɛncogo ɲuman, min bɛnnen don nɔgɔya-baarakɛminɛnw ma minnu bɛ se ka wuli i n’a fɔ sɛbɛnnikɛlan sɛbɛnnikɛlanw.
-
Lakanali ni dannaya: UL/CUL seere fila ani VW-1 tasuma-fanga-minɛn; a bɛ se ka asidiw, alkaliw, tuluw, jisuma ani nɔgɔw kɛlɛ, o la, a bɛ dɔ bɔ kurukuruniw ni tasuma farati la.
-
Baara nɔgɔya: Insulasi janya kelen bɛ a to a bɛ se ka a bɔ nɔgɔya la ani ka a tigɛ; bɛ dɛmɛ don jamanadenw ka baara dabila la IDC (Insulation Displacement Connectors) fɛ walasa ka baara kɛcogo ɲuman sɔrɔ.
-
Muɲu-Nafa: Muɲu ka dɔgɔn ni i y’a suma ni kabali lakananenw ye walima minnu funteni ka bon-, o b’a to a ka ɲi kosɛbɛ jamaba-sugu kɔnɔ mɔgɔw ka ɛntɛrinɛti ni sokɔnɔminɛnw na.
-
Lamini sariya labatoli ni a dɔnni : A bɛ baara kɛ ni PVC ye min tɛ plɔmu-; kulɛri jɛlenw ni taamasiyɛnw bɛ fɛnw lajɛli ni u ladonni nɔgɔya.
UL2468 Kabɔri ni Kabɔri wɛrɛw sumalen
| fɛn dilannenw |
 |
 |
 |
 |
| Modeli nimɔrɔ |
UL2468 ye (Cable Ruban Flat) |
UL2464 ye (Round Multi-core) |
UL1007 ye (Kɔrɔ kelen-kɔri bulama) |
Kablon Ruban blindage/FFC |
| kɛcogo | Parallèle plat (paralɛli) fla | Sɛrɛkili sirili + bɔgɔdaga | Sɛrɛkili kelen-koro | Filimu fla walima min ka fin kosɛbɛ |
| Funteni/voltaji hakɛ dantigɛlen |
80 degere / 300V |
80 degere / 300V |
80–105 degere / 300V |
Ka kɛɲɛ ni fɛn dilannen ye (a bɛ se ka kɛ sanfɛ) . |
| yɔrɔ minɛcogo | A ka dɔgɔ kosɛbɛ (a janya ka dɔgɔn | ka tɛmɛ o kan | hakɛ | minimum (a dɔgɔyalenba). |
| fɛn caman sɛgɛsɛgɛli | ɲuman (Flat bending) . | A ka fisa (saba{0}}yɔrɔ) . | duman | ɲuman ɲuman |
| EMI ka fɛnw tigɛli dabila | Général (min tɛ bɔrɔ) . | Jɛnkulu (kɔlɔsili bɛ se ka fara a kan) . | Zenerali | Kɔlɔsili min bɛ kɛ ni i yɛrɛ sago ye |
| maga-maga-kɔlɔsili | a bɛ sensitives kosɛbɛ wɔɔrɔ defrees de liberté électronique fari sensor | a bɛ sensitives kosɛbɛ wɔɔrɔ defrees de liberté électronique fari sensor | a bɛ sensitives kosɛbɛ wɔɔrɔ defrees de liberté électronique fari sensor | a bɛ sensitives kosɛbɛ wɔɔrɔ defrees de liberté électronique fari sensor |
| lakana hakɛ | Farikolo lakanani dɔnni min tɛ-ɲɔgɔn sɔrɔ (a bɛ se ka kɛ) . | Farikolo lakanani dɔnni min tɛ-ɲɔgɔn sɔrɔ (a bɛ se ka kɛ) . | Farikolo lakanani dɔnni min tɛ-ɲɔgɔn sɔrɔ (a bɛ se ka kɛ) . | Farikolo lakanani dɔnni min tɛ-ɲɔgɔn sɔrɔ (a bɛ se ka kɛ) . |
| sɔngɔ | fɛ́gɛn | hakɛ | fɛ́gɛn | Cɛmancɛ-ka se-kɔrɔta ma |
| baarakɛcogo min bɛ kɛ cogoya la | Kɔnɔna na kuran dilancogo/siginiden, LED | Kɔlɔsili layiniw ni minɛnw ni ɲɔgɔn cɛ |
yɔrɔ kelen jɛɲɔgɔnya |
Ultra-minɛn finmanw, teliyaba-telikan taamasiyɛnw |
UL2468 Kabɔri baarakɛcogo misaliw
Ko 1: So kɔnɔ minɛnw ani mɔgɔw ka ɛntɛrinɛti kan
Multi-core camanUL2468 kabɔris bɛ kɛ ka switchw ni sensɛriw siri kunnafonidilanw ni kuran pankurunba cɛ minɛnw kɔnɔ i n’a fɔ kolanɛgɛw ni mikrowɛnw. U jɔcogo fla bɛ sirako nɔgɔya yɔrɔ datugulenw na, wa a bɛ kɛ sababu ye ka ɲɔgɔn sɔrɔ nɔgɔya la ni IDC ɲɔgɔndanw ye, o la, bololabaarakɛlaw ka solder waati bɛ dɔgɔya. Printer dilannikɛla dɔ bɛ baara kɛ ni UL2468 ye sɛbɛnnikɛlan kunkolo lamagacogo wiring harnesses kama; kabali bɛ wajibiw dafa cycle ba tan ni tan na minnu bɛ kɛ ka flexing nɔgɔman kɛ k’a sɔrɔ a bɛ musaka dɔgɔmanw mara.
Ko 2nan: Lakanali siraw ni minɛnw
Kulɛri-kode multi-core UL2468 kabaliw bɛ baara kɛ ni kɔnɔna taamasiyɛnw cili ye kɔlɔsili kameraw ni alarma sitɛmuw kɔnɔ, o b’a to danfara bɛ nɔgɔya nɛgɛw ni ɲɔgɔn cɛ minnu bɛ baara suguya wɛrɛw kɛ. Minɛn dilannikɛla dɔ y’a jira ko, n’i y’a suma ni nɛgɛw ye minnu tɛ kelen ye, ribɔn-cogo kabɔriw bɛ filiw ka ɲɔgɔnkanu dɔgɔya ani ka sɛnɛfɛnw dilanni ɲɔgɔndɛmɛ ni feereli kɔfɛ-ladon teliya bɛɛ ɲɛ.
These cases demonstrate that UL2468 performs exceptionally well in applications requiring compact space utilization, safety certification, and cost-effectiveness; however, caution is advised-or alternative specifications should be considered-for scenarios involving high temperatures (>80℃), EMI barikama, walima a bɛ to ka kɔrɔta kojugu.
Sugandili ni baarakɛcogo ɲɛfɔli
1Wire Gauge Sugandili: Aw bɛ tension jigincogo jate ka kɛɲɛ ni kuran ni yɔrɔjan ye (jiginni ladilikan<3–5%). Use 24–28 AWG for low-power LED/signal applications, 20–22 AWG for medium-power supplies, and 18–16 AWG for higher-power applications.
2Seereyaw sɛgɛsɛgɛli: Aw ye aw jija ka a lajɛ ni UL taamasiyɛn, E-nimero, fɛn ɲɛfɔlen (misali la, 2468), ani VW-1 hakɛ bɛ fɛn dilannen na; ninnu bɛ se ka sɛgɛsɛgɛ UL ka siti ofisiyali kan.
3Lamini bɛnnenya : A bɔcogo kɔrɔlenw bɛnnen don so kɔnɔ baara ma walima minɛn datugulenw ma; ni a bɛ tulu funteni na min ka ca ni degere 60–80 ye , aw bɛ tulu hakɛ sɛgɛsɛgɛ; jateminɛ kɛ fɛn caman sɛgɛsɛgɛli wajibiyalenw na sigidaw la minnu funteni ka dɔgɔn-.
4Baarakɛcogo ladilikanw: Aw bɛ baara kɛ ni baarakɛlaw ka nɛgɛ-bɔli baarakɛminɛnw ye walasa aw kana bolifɛnw tiɲɛ; ka ɲɛsin multi-core kabaliw ma, i ka dantigɛli taamasiyɛnw kɛ walima ka baara kɛ ni kulɛri-kode ye walasa ka danfara don.
Kuncɛli
Ni a ka ɲɛfɔli fla ye, lakana seereyaw dafalenw, ani musaka-nafa sɔrɔli,UL2468 kabɔrikɛra kɔnɔnafiliw jɔyɔrɔba ye ɛntɛrinɛti minɛnw kɔnɔ. A kɛra LED yeelen fanga ɲɔgɔndanw ye wo, a kɛra kunnafonisɛbɛnw ye so kɔnɔ minɛnw kɔnɔ wo, walima a kɛra taamasiyɛnw cili ye minɛnw kɔnɔ wo, a bɛ ɲininiw dafa cogo la min bɛ ɲɛ ani min bɛ baara kɛ ka ɲɛ. Ni aw ye fɛnw jateminɛ kosɛbɛ i n’a fɔ sisan, yɔrɔko gɛlɛya, sigida cogoyaw, ani seereyaw wajibiyalenw sugandili senfɛ, o bɛ se ka dɔ bɔ kosɛbɛ dilancogo faratiw ni musakaw la.
N’i bɛ ka fɛn kura dɔ dilan walima n’i bɛ ka filiw kɛ ka ɲɛ, a ka ɲi i ka taa ni fɛn dilanbaga tɔgɔba dɔw ye walasa ka misaliw ni kunnafonidilanw sɔrɔ minnu ɲɛfɔlen don, ani ka sɛgɛsɛgɛliw kɛ walasa ka baarakɛcogo sɛgɛsɛgɛ i ka baarakɛminɛn kɛrɛnkɛrɛnnen na. UL2468 kabɔriw sugandili ɲuman tɛ dɔrɔn ka fɛn dilannenw ka ɲɔgɔndan sabati, nka a bɛ baara kɛ waati jan, lakana, ani dannaya bɛ se ka da a kan fana.
